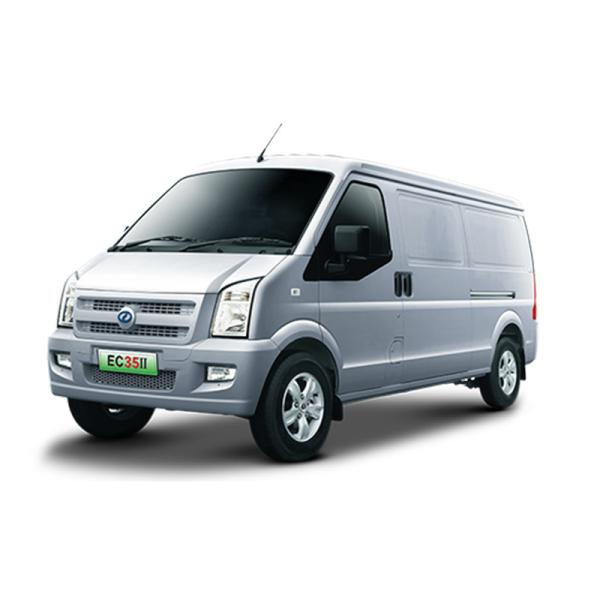

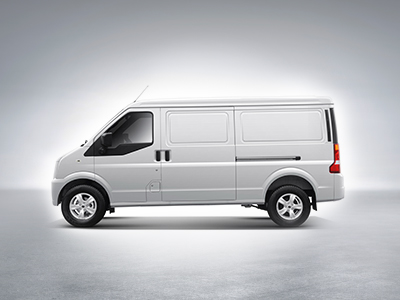

RUICHI EC35II Cargo Mini EV Van
Ruichi EC35II Specification
| Items | EC35II | EC35II |
|
| Champion Edition-Pioneer I | Champion Edition-Pioneer II |
| Basic Parameter |
| Size (mm) | 4500*1680*2000 |
| Cargo Size (mm) | 2530/1630*1440*1270 |
| Curb weight (kg) | 1460/1495, 1435/1465 | 1445/1475 |
| Rated load capacity(kg) | 1010/780, 1035/810 | 1025/800 |
| Wheelbase (mm) | 3050 |
| Front wheel track (mm) | 1435 |
| Rear track (mm) | 1435 |
| Number of doors | 5 |
| Cargo volume of van (m³) | 5.3/3.1 |
| Max speed (km/h) | 80 |
| Seater | 2/5 |
| Rear door opening mode | ●Sliding door |
| Sliding door type | Manual |
| Electric Drive and Rear Axle |
| Max speed (km/h) | 80 |
| Total motor power (kw) | 60 |
| Battery Type | Lithium Iron Phosphate |
| Rated Torque (N.m) | 220 |
| Number of drive motors | 1 |
| Motor layout | Sideways |
| Power battery capacity (kWh) | 38.64/38.4 | 38.64 |
| Cruising range under load (CLTC) | 274/282 | 282 |
| Chassis steering |
| Drive mode | Rear-mounted rear-wheel drive |
| Front suspension type | McPherson independent suspension |
| Rear suspension type | Longitudinal leaf spring non-independent suspension |
| Power type | Electronic power steering (EPS) |
| Front brake type | Disc brake |
| Rear brake type | Drum brake |
| Parking brake type | Mechanical |
| Front/rear tire specifications | 185R14LT 8PR |
| Active/passive safety equipment |
| Passive pedestrian protection device | Seat belt |
| Seat belt unfastened reminder | ● |
| ABS anti-lock braking system | ● |
| Brake force distribution (EBD/CBC, etc.) | ● |
| Reversing radar | ● |
| External/anti-theft configuration |
| Central locking system inside the car | ● |
| Front/rear electric windows | Front |
| Remote control key | ● |
| Multimedia configuration |
| Radio (with MP3) | ● |
| Number of speakers | 2 |
| Lighting configuration |
| Headlights | Halogen |
| Height-adjustable headlights | ● |
| Seat configuration |
| Seat material | Fabric |
| Driver seat adjustment mode | Front and rear adjustment + backrest adjustment |
| Passenger seat adjustment mode | Front and rear adjustment + backrest adjustment |
| Air conditioning | ●Manual |
"●" - indicates that this configuration is available, "○" - indicates that this configuration is optional,
and "-" - indicates that there is no such configuration;
DFSK Ruichi EC35II Advantages Introduction
About RuiChi EC35II:
As an electric microvan that has been ranked first in sales in the same class, the Ruichi New Energy EC35 has a 2-seat and
5-seat layout design, which is convenient for carrying people and cargo. The overall design is square and simple, highlighting
its unique new energy identity.
1. External dimensions: length, width and height are 4500x1680x2000mm respectively, wheelbase is 3050mm, cargo compartment
size: length, height and width of 2-seat and 5-seat are 2530/1630X1440x1270mm respectively.
2. Interior decoration: The center console uses the classic T-shaped layout, providing a large-size center control screen with a multimedia system,
front/rear parking radar and front fog lights
3. Battery power: It adopts a pure electric drive mode, with a maximum output power of 60kW (82PS) and a peak torque of 191N·m.
Different configurations can be selected with a maximum cruising range of 282KM to 274KM!
